Freestanding MoonBoard Kit & Pad System

SKU: 60-166

Free Shipping Over £0 excl MoonBoard products

Plastic Free Packaging

1% Of All Sales Donated to Environmental Charities

Tested By World Class Athletes

Video block first image
Video block second image Video block third image
Video block ellipse background
Video block ellipse background

Description

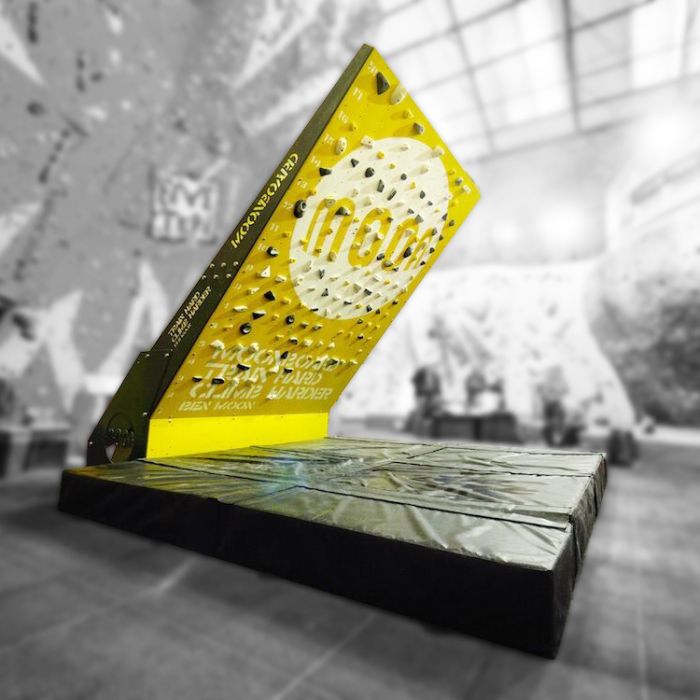

The Freestanding MoonBoard is a self-assembly, laser cut, powder coated steel framed MoonBoard. It requires two people half-a-day to assemble. During assembly it can be set at either the standard 40-degree angle or at a lesser 25-degree angle.

It’s possible to have the freestanding MoonBoard set up outside but the control box will need to be completely weather proofed, and as the board is made of marine ply if it was exposed to wet conditions over time it would delaminate. So we’d advise protecting it from the weather as much as possible to prolong the lifespan.

View the assembly instructions here https://youtu.be/SCdAb7pRqkU

All MoonBoard parts are made to order, therefore final shipping costs and delivery dates will be provided after you have submitted your Freestanding MoonBoard order at moonclimbing.com.

Technical Features

Includes

  • MoonBoard laser cut, powder coated steel frame
  • Freestanding MoonBoard panel kit - painted, pre-drilled and t-nutted. All panels are painted with a hard-wearing PU coating and MoonBoard graphics. Colour references:
    • Yellow – 1023
    • White – 9010
    • Grey – 7012
  • MoonBoard LED System
  • Original School Holds
  • School Holds Set A
  • School Holds Set B
  • School Holds Set C
  • Wood Holds Set A
  • Wood Holds Set B
  • Wood Holds Set C
  • Screw on Footholds
  • Bolt kits for all holds
  • MoonBoard Pad System

Footprints

  • 40-degree angle: 2440mm / 4860mm / 3554mm (width / depth / height)
  • 25-degree angle: 2440mm / 4860mm / 4010mm (width / depth / height)

Installation

The Freestanding MoonBoard requires self-assembly. Tools required are:

  • 6mm hex socket
  • 30mm spanner and socket
  • Small scaffold tower.
